Product : Insulators

As a perfect alternative and perhaps sometimes, as a complement to the range of proven ceramic insulators, Phoenix Electrical offers advanced technology insulator system.

Made of high grade polymeric material, our insulators exhibit outstanding electro mechanical strength and exceed all power transmission and electrical engineering requirements.

Phoenix Insulators are particularly well-suited for:

Heavily polluted environments
Areas where vandalism is a problem
High creepage on a short length
Compact line applications

Insulator Series		Arrester Series
Low Voltage Insulator	High Voltage Insulator	Lightning Arresters	Lightning Arresters (With disconnector)

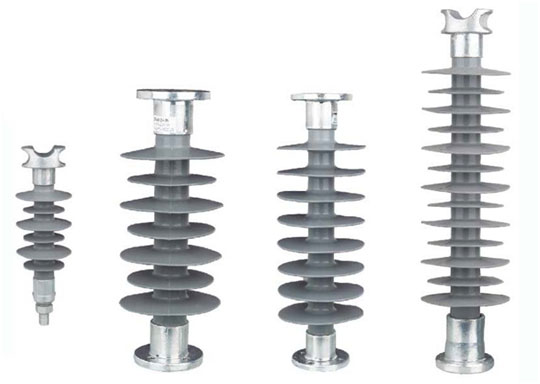

Low Voltage Composite Insulators (11kV, 33 kV, 66kV): Design features Rubber process technology and special making Silicone rubber housing and core rod are tightly integrated, so accidents caused by interface electrical breakdown are avoided With special colloid installation and compression joint technique in the connection of FRP Rod and metal fittings, insulator has advantages of high mechanical strength, nice figure, small volume, less weight. Hardware used is anti-corrosive. Performance Excellent electrical characteristic, high mechanical strength and extension intensity of FRP is stronger than general steel, higher than porcelain. So it's more safe and reliable Good resistance to soiling and flashover. The flashover voltage is 1.6-2 times higher than the same creepage of porcelain insulator. It is very useful in heavy polluted area Small volume, light weight,flexible structure, convenient for transportation and installation Silicone rubber has great hydrophobic property and reduce maintenance Good sealing performance, strength anti-electrical erosion, and the tolerance leakage. They have excellent resistance against erosion, low temperature and can be applicable for ambient temperature from -40 degrees to +50degrees. Good shock resistance and collision resistance to prevent crash bend and wrest. It can be interchanged with porcelain and glass insulator. Specifications Typical application voltages are indicative and may be affected by service environment or other factors. Please contact us for further information. High Voltage Composite Insulators (132kV, 220kV, 400kV): Design features Rubber process technology and special making Silicone rubber housing and core rod are tightly integrated, so accidents caused by interface electrical breakdown are avoided With special colloid installation and compression joint technique in the connection of FRP Rod and metal fittings, insulator has advantages of high mechanical strength, nice figure, small volume, less weight. Hardware resists erosion. Performance For overhead line electrical insulation of suspension or tension. Has a good mechanical properties, high tensile strength, invulnerability, and easy to install In addition, it is suitable for the middle and above contamination areas, particularly in the heavy contamination areas. Specifications Typical application voltages are indicative and may be affected by service environment or other factors. Please contact us for further information. Lightning Arresters: 30 kV , 10 kA class -3 120 kV , 10 kA class -3 Performance, design Features and specifications will be updated soon. Lightning Arresters (With disconnector): Protective devices against switching and lightning overvoltage in electrical systems such as power transformers, distribution pole transformer. Performance, design Features and specifications will be updated soon.

Product : Insulators

Insulator Series

Arrester Series

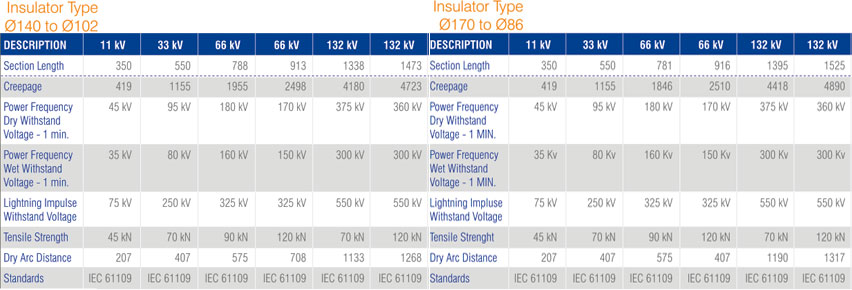

Low Voltage Composite Insulators (11kV, 33 kV, 66kV)*:

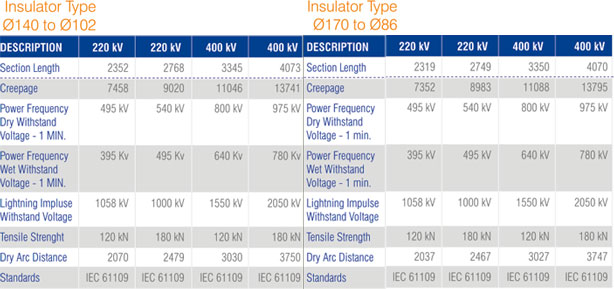

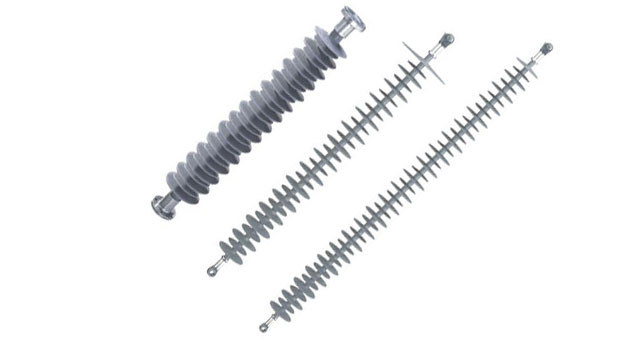

High Voltage Composite Insulators (132kV, 220kV, 400kV)*:

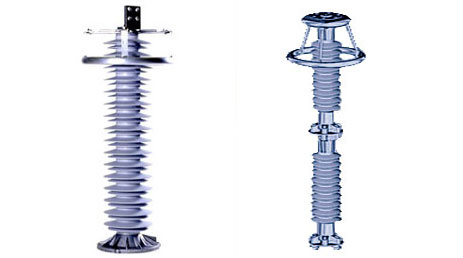

Lightning Arresters:

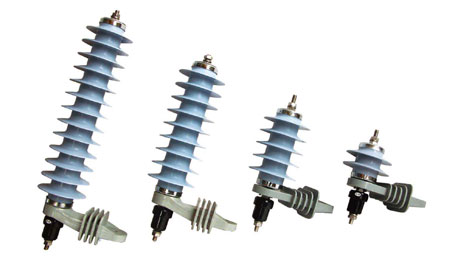

Lightning Arresters (With disconnector):
